‪Preparing a Selection of Control Variables for a Dose Distribution to be Adjustedin a Technical Instrument

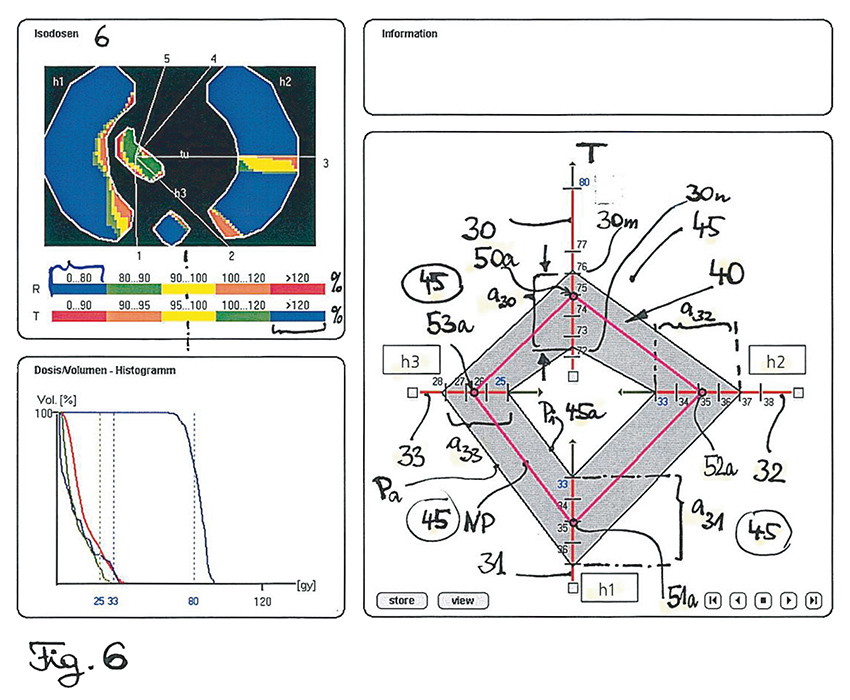

‪Multiple axes as radiation dose scales (30, 31, 32, 33) for the target volume (T) and the at least one risk volume (h1, h2, h3) are displayed visually on the display device (3; 3a, 3b) to form at least one risk axis and one target axis. The characteristic values (50, 51, 52, 53) of the radiation doses for at least a plurality of the stored problem solutions are assigned to the respective axes, so that for each risk axis (31, 32, 33) and the target axis(30) there is an acceptanceinterval (a30, a31, a32, a33), together defining a planning zone (40; 41, 42) for all axes. The planning zone (40) on the display device(3) is emphasized visually in comparison with the environment (45,45a).

See US 7,391,026B2‬
